Nobody gets excited about grounding. It doesn't make more watts, it doesn't charge batteries faster, and it's the part of the wiring diagram most DIY solar builders skim past on their way to the parts that actually feel like progress. That's exactly why it's worth stopping on. A solar array that isn't grounded and bonded correctly isn't just "not up to code," it's a system that can shock you, cook your electronics in a lightning event, or smolder inside a wall for months before anyone notices.
This is the unglamorous companion piece to sizing your array or picking a charge controller. You can have the right panels, the right controller, and the right battery bank, and still build something dangerous if the grounding and bonding are wrong. Let's fix that.
People use these words interchangeably and that's part of the confusion. They solve different problems.
Equipment grounding connects the metal frames, racking, and enclosures of your system (panel frames, the charge controller case, the inverter chassis) to earth. Its job is to give fault current somewhere safe to go if a hot wire ever touches metal it shouldn't. Without it, a frayed wire touching a panel frame turns that frame into a live conductor, and the first thing to complete the circuit to ground might be you, standing on wet dirt, grabbing the frame to adjust the tilt.
System bonding connects the negative conductor of your DC system to ground at one, and only one, point. This keeps the whole system referenced to the same "zero" so that a fault shows up as a clear, measurable short instead of a floating voltage that's hard to detect and easy to get shocked by.
The National Electrical Code, specifically Article 690 for solar photovoltaic systems, spells out both of these requirements, and NFPA (the same body behind residential fire code) treats grounding as a core safety system, not an accessory. If you're pulling a permit anywhere, an inspector is going to look at this before almost anything else.
Grid-tied solar usually gets installed by a licensed electrician because it has to pass utility interconnection review. Off-grid systems, especially small cabin and shed setups, get built by the property owner with a panel, a controller, some 10-gauge wire, and a Saturday afternoon. There's no inspector standing over the build, so mistakes ship.
The most common gaps we see described in owner forums and troubleshooting threads:
None of these show up as a problem on a sunny day when everything's working. They show up during a lightning storm, a rodent-chewed wire, or a decade-old panel with degraded insulation. That's the trap with grounding: the entire point is protecting you against a rare, bad event, so a shortcut feels free right up until it isn't.

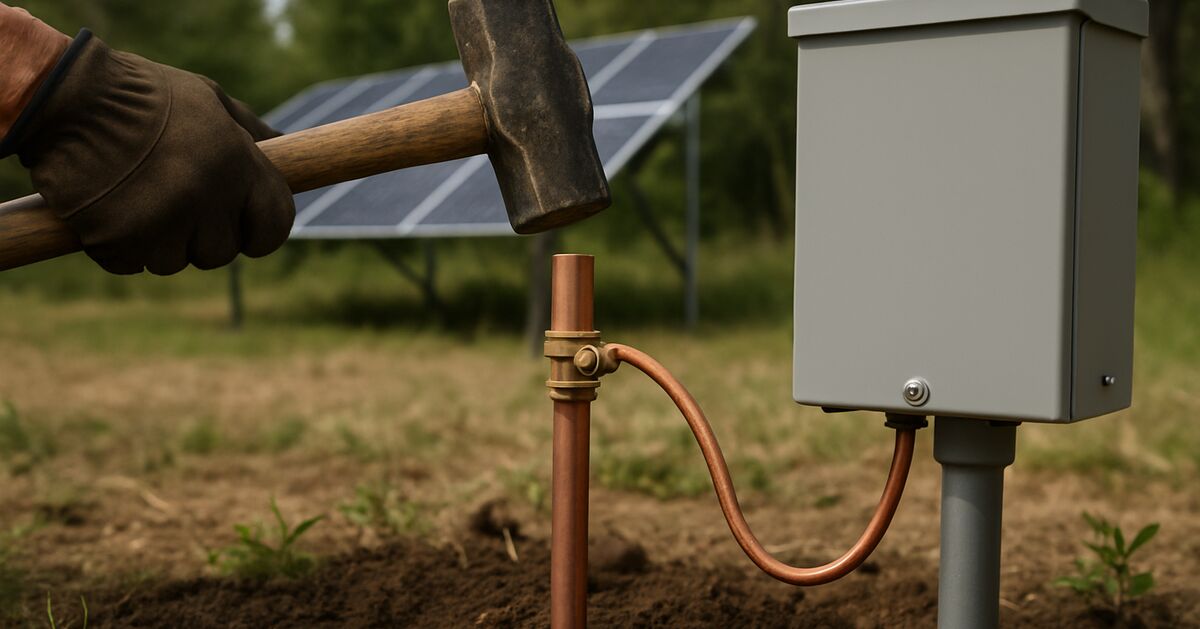

Start with the ground electrode. This is usually a copper-clad steel rod, at least 8 feet long, driven fully into the earth near your array or your power shed. In rocky or very dry soil, a single rod may not achieve low enough resistance; check your code requirements, which commonly allow a second spaced rod, a ground plate, or a ground ring buried in a trench. If you're not sure your ground is doing its job, a ground resistance tester (some electricians will do this as a quick add-on visit) checks it in minutes. This is one of the few line items on an off-grid build where paying for ten minutes of a professional's time can be smarter than guessing.
From the rod, a continuous, unspliced copper conductor (commonly 6 AWG or larger, size depends on your system) runs to your main grounding point at the combiner box or the negative bus of your power shed. Every metal panel frame, every piece of racking, and every enclosure gets bonded back to that same point, typically with listed grounding lugs and bonding jumpers rated for outdoor exposure, not household wire nuts and not hose clamps.
The negative bonding point is a single connection between your DC negative bus and your grounding system, made once, in one place. If you've got a hybrid inverter or an all-in-one power center, check the manual: some units bond negative to ground internally, and if you also bond it externally you can create a second bonding point, which manufacturers warn against because it can cause nuisance tripping, corrosion, and stray current.. This is a detail that trips up a lot of otherwise careful DIY builders, so read the manual section on grounding specifically before you wire anything.
On the DC side between panels and charge controller, most inspected systems also want overcurrent protection and, depending on array size and code jurisdiction, ground fault protection that can detect a fault and open the circuit before it becomes a fire. Many modern charge controllers and combiner boxes have this built in. If yours doesn't, it's worth adding a listed GFP device rather than skipping it.
A lot of off-grid property is exactly the kind of exposed, elevated, tree-cleared spot that draws lightning, whether that's a ridge-top cabin or an open pasture array. Grounding does not make your system lightning-proof. What a solid grounding system does is give a lightning strike (or the induced surge from a strike nearby) a low-resistance path to dissipate through, instead of through your inverter, your batteries, or your wiring inside the wall.
Pairing your grounding system with surge protection devices at the combiner box and at the inverter input adds real protection against the induced surges that are far more common than a direct strike. If you're in a lightning-prone area, this pairing matters more than almost any other upgrade you could make to an existing system, more than a bigger battery bank, more than better panels.
Grounding isn't an isolated task, it touches everything else in your electrical plan. If you're deciding between a 12V, 24V, or 48V battery bank, your bonding point and conductor sizing change with system voltage. If you're relying on a generator as backup, the generator's neutral-ground bonding has to coordinate with your inverter's, or you can end up with two bonding points fighting each other, which is a subtler but real hazard covered in the details of generator pairing.
If you're still in the planning stage and haven't broken ground on a cabin yet, this is a good argument for reading a parcel's sun and slope and your electrical layout together, before you've committed to where panels, batteries, and your ground rod location will sit. Running a ground conductor 80 feet because the rod ended up far from the array is avoidable with five minutes of planning.
Treating the ground wire as optional because "it's off-grid, there's no inspector." The inspector isn't the reason the wire exists. The wire exists because a fault has to go somewhere, and the choice is between "into the earth" and "through whatever's touching the metal."
Using undersized or wrong-material grounding wire. Aluminum ground wire against copper equipment grounds, or vice versa, sets up galvanic corrosion that quietly degrades the connection. Match your materials, or use listed bimetallic connectors.
Daisy-chaining grounds instead of running them to a single point. It's tempting to ground panel one to panel two to panel three in a chain. If a connection anywhere in that chain fails, everything downstream loses its ground. A home-run or a properly bonded common bus is more reliable.
Forgetting to re-torque and re-inspect. Outdoor electrical connections loosen with thermal cycling, humidity, and vibration from wind on panel racking. A ground connection that was solid at installation can work itself loose within a couple of seasons. A once-a-year visual check, ideally before storm season, catches this before it's a problem.
Skipping the ground on "temporary" setups. Portable panels, temporary construction power, and generator-only setups get treated as exempt because they feel short-term. Faults don't care how long you meant to leave something plugged in.
Sizing your own array, picking a controller, even running your own DC wiring, these are all reasonable DIY territory if you take your time and read the manuals. Grounding and bonding are the one area where getting a licensed electrician to review your work, even just for an hour, buys real protection. Many electricians will do a paid consultation or inspection-only visit even if they didn't do the installation. That hour is cheap compared to a fire or a fault that finds you instead of the ground rod.
If you're unsure where to start, our FAQ page covers some of the basic terminology, and the about page has more on how we approach these topics: practical, not theoretical, and always erring toward "check this yourself" over "trust the forum post." If you've got questions specific to your build, feel free to get in touch, and browse the rest of the Solar & Power archive for the pieces on sizing, batteries, and controllers that pair with this one.
Grounding is the least exciting hour of a solar build and the one most likely to matter on the worst day your system ever has. Do it right the first time, check it once a year, and it'll do its job quietly for as long as your system runs.
